AS568 US standard O-rings size chart with dimensions for industrial sealing applications

AS568 美国标准

O 形圈凭借高性价比、性能可靠及安装便捷的优势,广泛应用于各类动密封与静密封场景。我们提供多种规格的 O 形圈,其中包含 AS 568 美国标准系列。



以下为我们提供的 AS 568 标准详细尺寸表。更多规格与信息可查阅我们的产品目录。

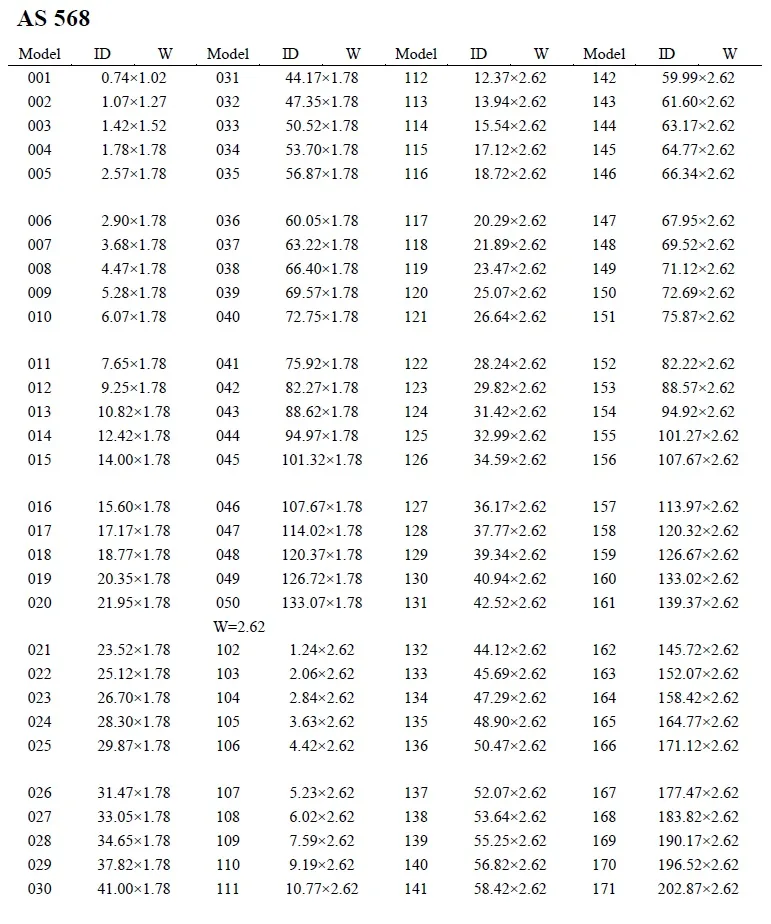

AS568 US standard O-ring size chart part 1 showing dimensions for sealing applications

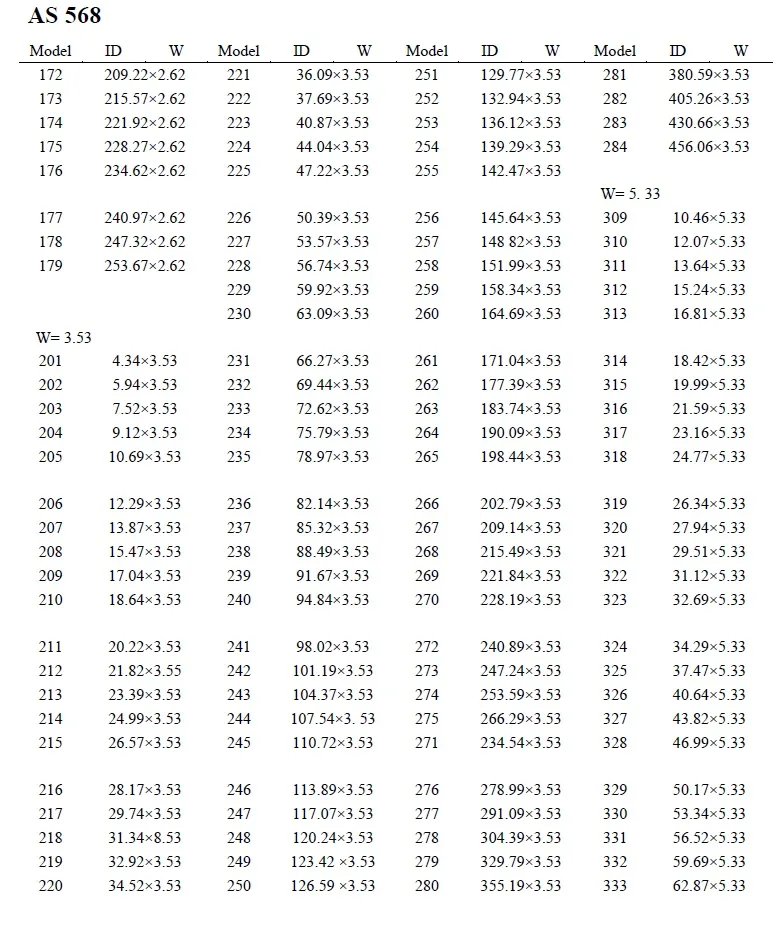

AS568 US standard O-ring size chart part 2 with detailed dimensions

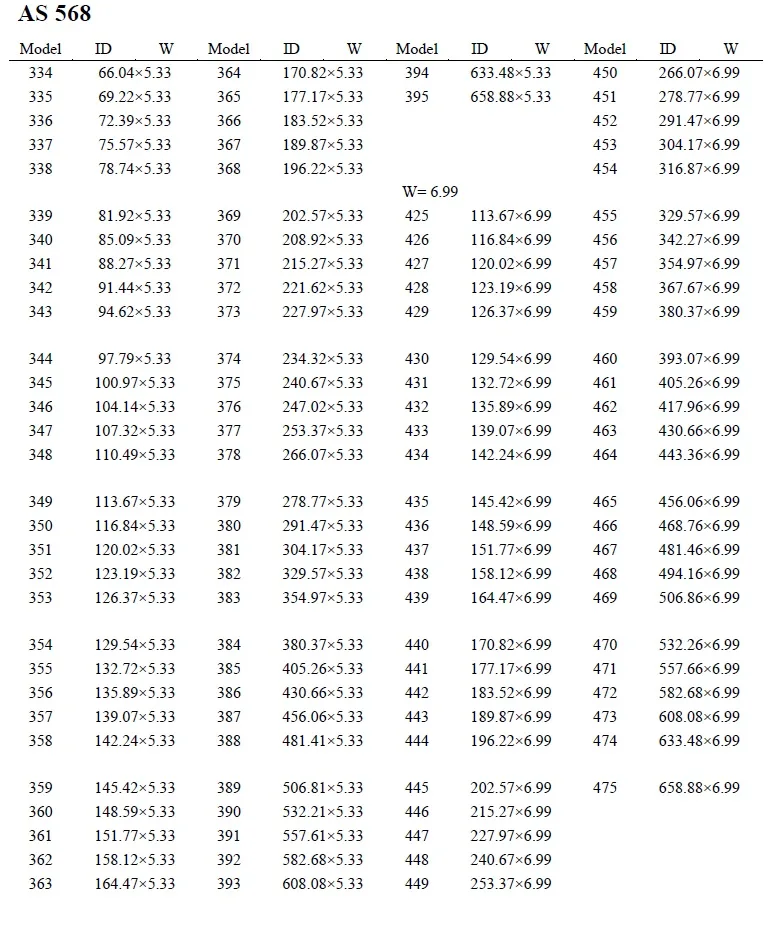

AS568 US standard O-ring size chart part 3 with dimension table

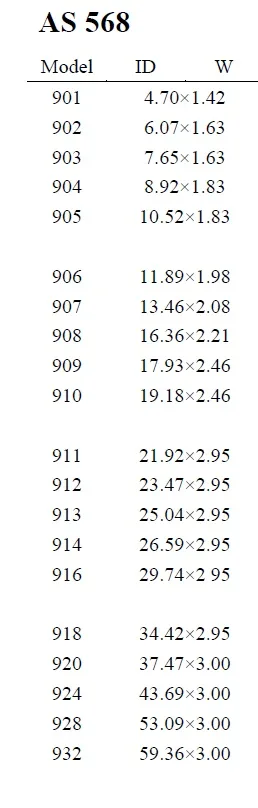

AS568 US standard O-ring size chart part 4 showing full dimension specifications
